Camera inspection: $300–$750
The first and non-negotiable step. Most operators credit it against the works if you proceed.
CCTV Surveyed, Then Relined
Pipe Relining
Specialists In
Beecroft
A cracked or root-damaged drain does not have to mean a trench through the garden. A resin liner is cured inside the existing pipe from an access point you already have, sealing every joint along the run, and the surface above is never touched.
- Licence 368473C, fully insured
- CCTV survey before any quote
- Nothing dug up, nothing reinstated
Why No-Dig Suits The Drains In Beecroft
Relining is a structural repair, not a cleaning method, and the distinction matters when you are comparing quotes. Jetting restores flow through a pipe that is still cracked. A liner restores the pipe.
That also means it is not always the answer. It cannot correct a run that has sagged or lost its fall, and it has nothing to line against where a section has collapsed. A camera survey separates those cases in about an hour, and the answer changes the cost by a multiple.
Layers of previous work, and what the camera finds
An older house is rarely on one generation of drainage. It is on three or four, joined wherever a bathroom moved or an extension went on, and the transitions between materials are where most faults sit.
A camera run on a property like this is genuinely diagnostic rather than a formality. It is common to find a sound original clay run, a poor 1970s junction, and a modern PVC section all on the same line, each needing a different answer.
Grease lines, and what relining does and does not solve
A food premises line narrows with hardened fat long before it fails structurally. Relining a greased line without addressing the grease simply gives you a smooth new surface to coat, and the interval to the next problem barely changes.
The right sequence is jet it clean, camera it properly, and then decide. If the barrel is sound the answer may be a service schedule rather than a liner. Where the camera shows cracks or open joints under the build-up, relining is worth doing and the smoother bore genuinely slows re-accumulation.
Long runs and where the access points sit
Properties on a slope often have long drainage runs, sometimes crossing the whole block to reach the main. The practical questions are where the inspection openings are and whether the liner can be drawn through in one length or needs a second access.
That is worth establishing before quoting. A single long run costs less per metre than the same distance broken into stages, and the difference is decided by access, not by the pipe.
Why earthenware is the ideal host for a liner
The blue gums and turpentines lining Beecroft’s streets and the Byles Creek valley push roots into every gap in old clay sewer joints, the single biggest blockage cause in the suburb.
Clay is rigid, round and predictable, and that geometry is exactly what a liner wants. The resin sleeve cures hard against a barrel that holds its shape, and the short pipe lengths that make clay joint-heavy are the same joints the liner seals in one pass.
So the material that causes the most recurring blockages in older streets is also the easiest to repair properly without digging. That is a genuinely lucky combination and it is why relining suits this housing stock so well.
Keeping the tree and fixing the drain
Removing a mature tree is expensive, often needs approval, and frequently does not solve it: the roots already inside the pipe do not leave when the trunk does, and the joint is still open for the next one.
Beecroft sits high on Sydney’s Upper North Shore (postcode 2119), a Federation-era village suburb wrapped in bushland and bordered by Cheltenham, Pennant Hills and Epping. Its grand old homes and towering gums are beautiful, and exactly the combination that keeps drain crews busy.
Relining lets both things be true at once. The garden stays as it is and the drain stops being a route to water. For most owners that is the whole appeal, and it is why no-dig gets specified on established blocks far more often than on new ones.
What the camera has to show first
Root intrusion is not automatically a relining job. If the roots are fine and the pipe behind them is sound, a cut and jet with a maintenance interval can be the right call for years.
What moves it to relining is structural: an open joint you can see daylight through, a cracked barrel, or a run that has been cleared repeatedly at shortening intervals. Anyone quoting a liner without showing you the inside of the pipe is guessing, and you should ask for the footage.
The camera comes first, always
No honest quote for relining exists before someone has looked inside the pipe. The survey establishes the material, the diameter, where the defects are, how far they sit from the access point, and whether the fall is intact.
Ask for the footage. It is your property and the recording is the evidence behind the price. It is also what you will want if the question ever comes up at sale.
What it costs in Beecroft
Per metre for a liner, $500–$900
Domestic sewer across Sydney in 2026. Longer single runs sit at the lower end of it.
A junction or patch repair, $1,500–$4,000
Seals one defect. Right where the rest of the run is sound and the ground is stable.
A whole domestic line, $6,000–$15,000
Length, diameter and how many branches need reinstating are what move the number inside that band.
Digging it up, from $2,500 plus making good
Excavation is only half the cost. Replacing the driveway or garden above it is the other half.
Figures reflect the 2026 Sydney market rather than a quote. You get your own number once we have seen inside the pipe. Figures here are indicative of the 2026 Sydney market rather than a quote from us, you get your own number as a fixed price before any work starts.
From Survey To Finished Liner
Step 01
Step 01
Camera The Line

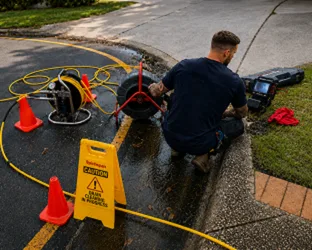

A CCTV survey establishes the material, the diameter, where the defects are and how far they sit from the access. You see the footage, and it is what the quote is built from.
Step 02
Agree The Method
Patch or full length, and occasionally excavation instead. We will tell you when digging is the better answer even though it is the bigger quote.
Step 03
Clean, Line And Cure
The run is jetted so the liner bonds to pipe rather than debris, the liner is installed through the existing access, and it cures in place. Most domestic jobs are a single day.
Step 04
Reinstate And Re-Camera
Every branch the liner passed is reopened from inside, then the run is cameraed again so you can see it is continuous and the junctions are clear.
Want The Camera Run First?
Leave your details and a licensed plumber will call back to arrange the survey. No quote is given before someone has seen inside the pipe.
Pipe Relining Questions
The questions that come up before every relining job, answered with real numbers.
Slightly, and it rarely matters. A liner reduces the internal diameter by a few millimetres, but the cured surface is far smoother than aged clay or concrete, so flow capacity is typically maintained or improved. Where diameter genuinely is marginal, the camera survey shows it before anyone quotes.
No. A liner takes the shape of the pipe it cures inside, so it cannot correct a run that has sagged into a belly or lost its fall, and it has nothing to line against where a section has collapsed. Badly deformed or crushed pipe needs replacing. What relines well is the common case: a sound barrel with cracked or open joints, which is most older clay drainage.
Cured-in-place liners are generally rated at around fifty years, comparable to a new pipe and usually longer than the remaining life of the earthenware they are installed into. The reason the figure is that high is structural rather than promotional: a liner has no joints along its length, and joints are what fail. Most warranties on the workmanship run considerably shorter than the rated life of the material, so ask what you are actually being given.
No. A listing restricts change that is visible or that disturbs significant fabric, which is exactly what a trenchless repair avoids. In practice that makes relining the path of least resistance on a listed or conservation-area property: nothing is removed, nothing changes above ground, and there is no reinstatement to get approved.
That is the main reason commercial work uses it. A liner is installed from an existing access and cures in hours, so the job is commonly scheduled overnight or across a single closed day. An excavation through a floor or car park is measured in days, and for most premises the trading interruption is a bigger number than the invoice.
Usually much better, because excavating on a slope is a different job from excavating on the flat. Machine access is often impossible, spoil has to go somewhere, trench walls need support, and reinstating a tiered garden or retaining structure can cost more than the drainage work itself. A liner is installed from an existing access and leaves the surface untouched.
Often yes, and that surprises people. A well laid clay line of that age usually still has a sound barrel; what has gone is the mortar or rubber at each joint, and there is one every few hundred millimetres. You are sealing a long series of small openings, not replacing a pipe, and that is exactly what relining is for.
